HOMESTEAD RESIDENCE — MASTER PLAN
Basement
Main Floor
Upper Floor
Site Close-Up
Property View
Full Property
SCHEDULE
- Mechanical Room14×10ft
- Root Cellar14×13ft
- Stair (N landing)N-S run
- Rec Room / Flex12×15ft
- Full Bath7×8ft ⟳ stack
- Gym / Utility5×8ft
- Utility Chaseplumbing stack
- Garage 2-car27×24ft ↑N door
- Living Room14×11ft ←W
- Home Office14×12ft ←W
- Hall + StairN↓bsmt · S↑upper
- Mudroom6×7ft · dog wash
- Utility / Laundry5×7ft
- Kitchen12×10ft →E
- Dining Room8×7ft ↓S
- Half Bath4×7ft ⟳ stack
- Back Porchfull width ↓S
- Primary Bedroom14×22ft S wall
- Primary East WingS+E windows
- Ensuite12×9ft ⟳ above kitchen
- Bedroom 214×17ft ←W
- Main Bath12×9ft ⟳ above utility
- Linen + AtticRoof access
- Hall + S Landingarrives going ↑
- Shop (existing)40×60ft · overlay on photo
- House + Garage46×63ft footprint
- Greenhouse24×20ft
- Garden30×40ft
- Craft Cabin18×16ft
- Horse Barn20×30ft
- Concrete Pad600×300ft

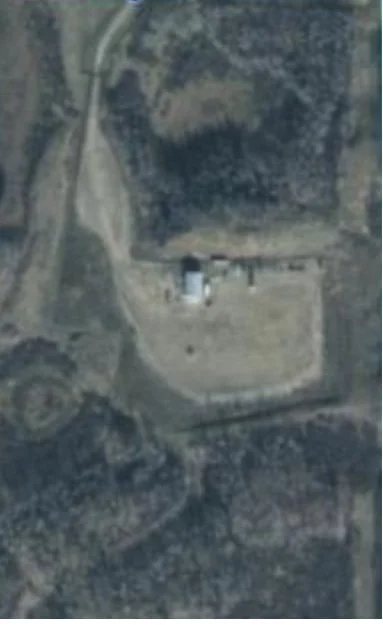

Shop overlay (green outline) positioned over the actual building visible
in the aerial photo. Corner marks help align. All buildings at 0.95px/ft
scale.
- Paddock6ac · 510×510ft
- Hay Field~2.2ac · 600×160ft
- Rotational quarters4 × 1.5ac
Paddock south of pad. Barn SW corner of pad gives direct access to
paddock gate. Rotational quarters shown dashed — maximises pasture
recovery for 2 horses.

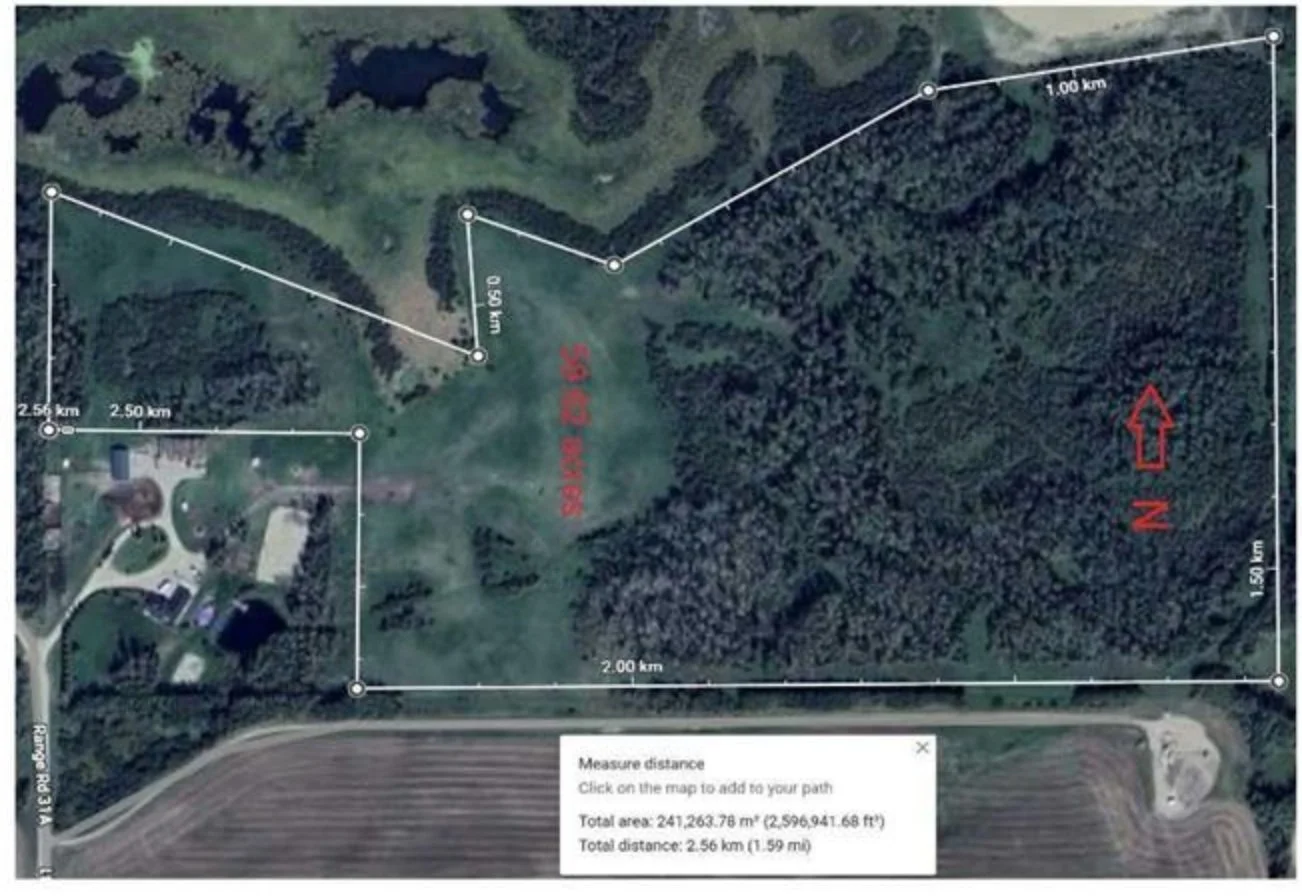

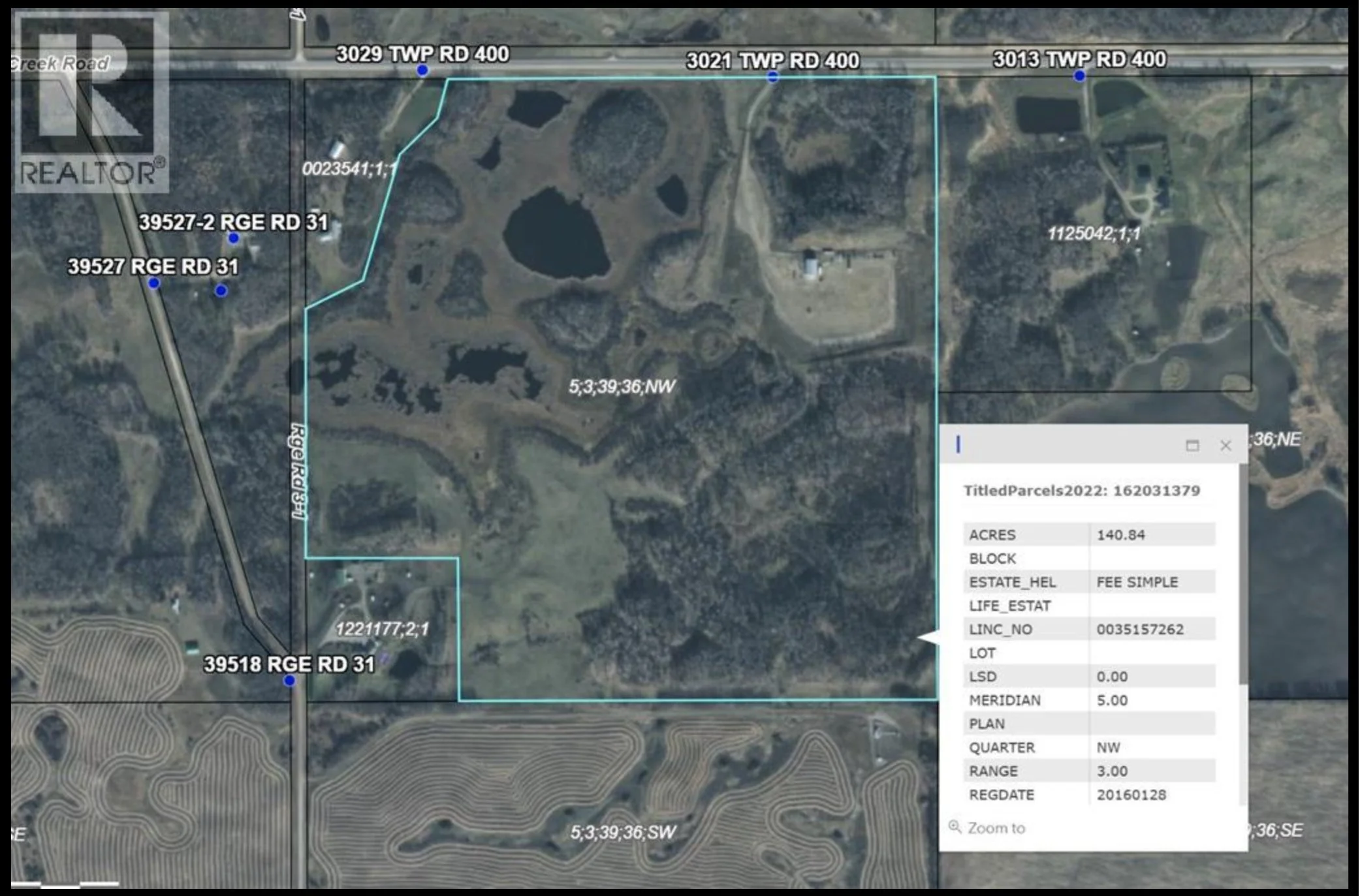

- Total property141 acres
- NW Wetlands~10 ac
- SW Prairie~15 ac
- Paddock6 ac
- Hay field~2.2 ac
- Treed/natural~103 ac

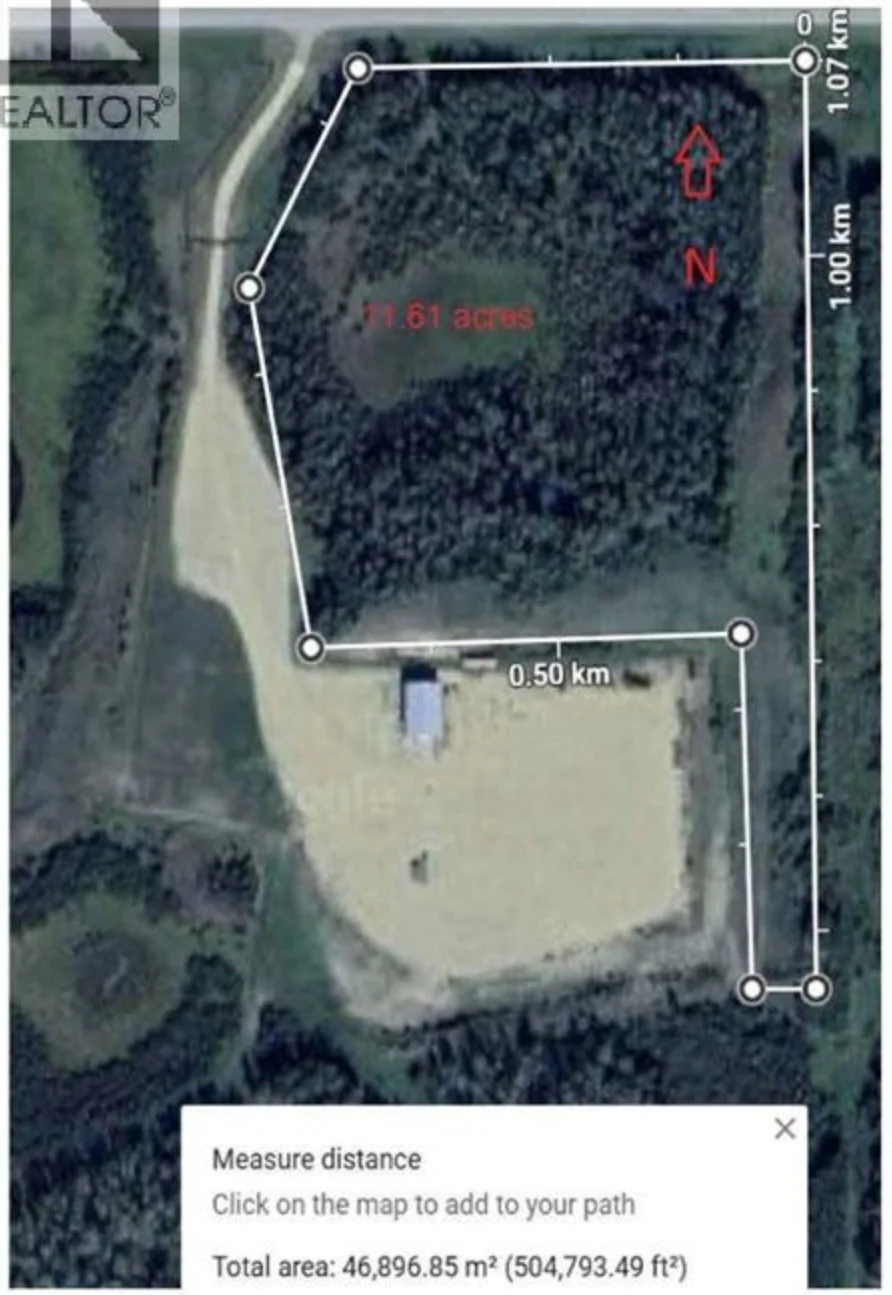

Buildings NE per aerial. Paddock immediately south of building cluster.
Wetlands NW around visible ponds. SW prairie open grassland for seasonal
horse free-grazing.
Basement~1,680 sf
Main floor~1,390 sf
Upper floor~1,390 sf
Garage~648 sf
Total living~4,460 sf
DESIGN NOTES
Stair runs N-S (x=355–395) through all 3 floors. Basement landing arrives at NORTH end. Upper landing arrives at SOUTH end. Main floor hall wraps both. East zone (x=395–535) is the plumbing stack — baths on all floors align vertically.
